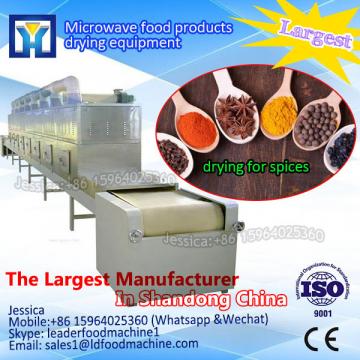

Hot sale microwave mint leaf drying sterilizing machine with 304# stainless steel material

If you interesting in Hot sale microwave mint leaf drying sterilizing machine with 304# stainless steel material ?kindly ask me, Shandong industrial microwave oven can give technical support and service.
Please metioned below information in your inqury.
1.What's your raw material? How about the form of your products?
2.How much moisture content before drying and after drying?
3.How many input and output capacity per hour?
Once confirm above details,we can provide a suitable solution for you.

In addition,Shandong industrial microwave oven not only manufacture Microwave equipment ,but also have oil press and refined oil equipment for peanut, soybean, rapeseed, cottonseed, sunflower, sesame, animal,grape seed, acer truncatum, peony seed, walnut, hemp seed, pine, tea seed, papaya, milk thistle seed, and other special material.

Expect to help you and cooperate with you in near future.

Contact Shandong industrial microwave oven
Miss Jessica
Skype:leaderfoodmachine1
Tel:+8615964025360 (WhatsApp&Wechat)
Email:[email protected]

Specifications

microwave drying machine for herb/leaves
1.Fast/uniform drying
2.Keep color,ingredient,nutrition
3.Easy control,safety
4CE

Hot sale microwave mint leaf drying sterilizing machine with 304# stainless steel material

Introduction

The tunnel become weeks the wave the Chinese herbal medicine Exterminate the germs for Exterminate the germs machine is currently locally than for forerunner the equipments. Primarily used for to take orally the liquid, Chinese herbal medicine, the pill, water the pill, immerse , wet powder, grain, liquid etc. the product's Exterminate the germs , extensive application in the disinfection in chemistry, food, timber, clothing etc.,defend the mildewed, Exterminate the germs, dry of use.

The dry method of germs of microwave compare, has time short, the temperature is low, even, thoroughly, not break not and originally possessed composition, not imply to measure, the result show, index sign stability dependable, have to economize the energy, operation simple, easy maintenance etc. a series of advantage.

Application

microwave drying equipment are mainly used for drying all kinds of teas,herbs, medicinal herbs, leaves, herbs leaves, mint leaves, flowers, green leaves, such as wild chrysanthemum flower,broadleaf holly leaf, olive leaf, lotus leaf, honeysuckle , green tea,black tea,puer tea, flower tea.

Automatic temperature control system, automatic microwave density control system, automatic alarm system, transmission correction system, transmission frequency control system, PLC control system, microwave magnetron with Panasonic, LG Brand, water cooling or wind cooling transformer(optinal), etc. This ensures that the equipment can work continuously for 24 hours.

Design features

1.Transmission System:

a. Speed of Conveying belt is adjustable.

In the transmission system, it applies frequency-converting control of speed, worm gear reducer.

b. The conveyor belt is Teflon Belt,special for microwave.

c. The deviation of belt is adjusted with Hand-movement.

2. The body of the Tunnel

a.The body of the microwave tunnel is made of Stainless Steel. In side there is one set of humidity extraction system to extract the humidity after heating.

b. To be safe, there is Automatic Power-off device while open the door of the machine.

c. The protecting case of Magnetic-pipe and transformer is made of stainless steel. On top there is one set of Heat extraction system to extract the heat energy generated by

working of machine.

d.The frame of machine is made of Stainless Steel pipe ,others is made of cold-rolled sheet painted.

e.One set of infrared thermometric is installed at the outlet of the tunnel to measure the temperature.

3.The controlling system

a. On the outside panel there are frequency converting speed controller, emergency stop button, Start, Stop buttons,

b. All the controlling components will be installed into one controlling box, which is at the entrance of the machine.

c.Ordinary button control system,.

d.The microwave power can be adjusted by choosing in the display text.

e. Every microwave source is an independent unit.If one is broken, the machine will not be prevented from running.

f. Every magnetron has an overheating protection device.

Characteristic of microwave drying machine

1. Fast heating.

Microwave heating is completely different with traditional heating mode. It makes heating medium become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can achieve heating temperature in a very short time.

2.Save energy and efficiency.

Because materials contain water absorb microwave easily and fever, so in addition to a small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy.

3. Heating even.

No matter how shape of each part of the body, microwave heating all can make the object and evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the endogenous phenomenon focal.

4. Mouldproof, sterilization, fresh.

Microwave heating has thermal and biological effect, can sterilize and mould proof in low temperature. Due to heating rapidly, the time is short, can maximum limit save material activity and the vitamin original colour and lustre and nutrition of food.

5. Craft is advanced, control easily.

Microwave heating just have the basic conditions of water, electricity, as long as control power, can realize microwave heating or terminate immediately, use microwave equipment can process automation control of heating process and heating process specification.

6. Covers less area, safety and harmless.

Because microwave can be controlled in made of metal heating indoor and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and dust pollution; Neither polluting food, also do not pollute the environment.

From the economic efficiency analysis, microwave drying also have advantages than traditional methods , such as compared with the far infrared drying, usually save energy more than a third.

In actual work,microwave dry and sterilization equipment basically use in material with low moisture (moisture content below 30%). Also can be used for high moisture.At this time, traditional drying method (hot air, electric oven d )drying rate low, consume energy , and tunnel type microwave drying equipment from start to finish drying ,need three to five minutes. Traditional methods, equipment, covering a large area, many employees, often have the pollution, fire control, etc.

Technical parameter

Power supply	380V±10% 50HZ±1% three-phase five-wire
Microwave Output Frequency	2450±50MHz
Microwave input apparent power	112KVA
Microwave output power	80KW
Microwave power adjustment range	0-80KW(adjustable)
Ambient temperature	-5-40°C
Relative humidity	80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas
Overall dimension(L*W*H)	14900*1665*1750 mm
Transmission speed	0-10m/min(adjustable)
Height of the inlet and outlet	60 mm
Microwave leak	accord with a country GB10436-89 standards(
Equipment safety	accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index

We can design the equipment according your requirement.
